ROVER 10/25hp 'Ten'

Body Shapes

1927 - 1933

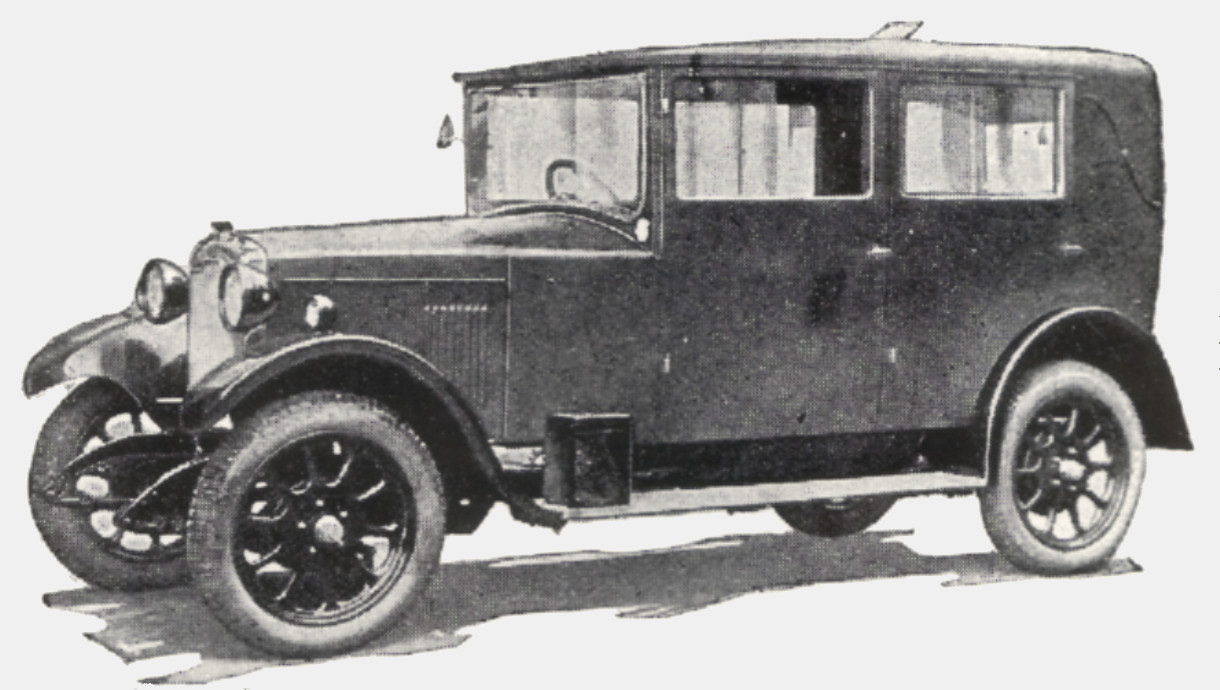

Rover 10/25 hp Weymann 4-Windows Saloon Model

The Weymann 4-window saloon model is available from the beginning of the series (1927) in two versions at the same price:
The "Paris" version has a fixed roof, the "Riviera" version a large folding roof.
The front windows are made to wind up and down, the rear windows sliding.

Dimensions

Wheelbase 8 ft 8 in / 2642 mm
Track 4 ft / 1219 mm
Width (interior) 3 ft 6 in / 1067 mm
Length overall 12 ft 6 in / 3810 mm
Width overall 5 ft 1 in / 1549 mm
Height overall 5 ft 8½ in / 1741 mm

Price

At Works (1927) £250 - (1929) £252

Extras

Bumpers - £8 8 0
Non-Standard Body Colours - £10 0 0
Non-Standard Upholstery - £5 0 0
Safety Glass throughout - £10 0 0
Safety Glass, Screen only - £5 0 0
Wire Wheels in place of Artillery Wheels - £9 0 0

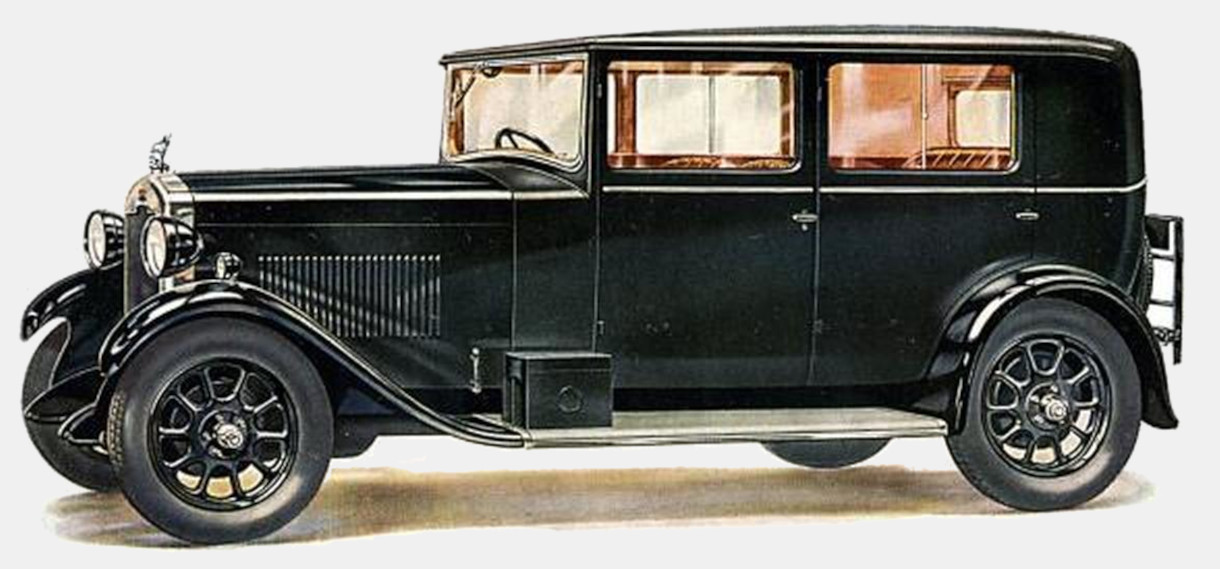

The above image shows the Weymann 4-light Saloon, Model Year 1929. The changes to the bodywork are clearly visible.

Colour Schemes (1929)

All Black (illustrated above)
Maroon
Brown
Blue
All having a waist line of chromium beading
Seating is upholstered in leather, either Blue, Maroon or Brown
Black steel artillery wheels are fitted as standard.

Interior Dimensions (1929)

1929 Rover 10/25hp Weymann Saloon Dimensions

Distance front edge of front seat - pedal	20 ins	508 mm
Distance front edge of front seat - floor panel	9 ins	229 mm
Distance lower edge of steering wheel - front seat backrest	16 ins	406 mm
Seat depth front seat	20 ins	508 mm
Height of front seat backrest	18 ins	457 mm
Headroom front seat	36 ins	914 mm
Distance front edge rear seat - floor panel	12 ins	305 mm
Seat depth rear seat	20 ins	508 mm
Height of rear seat backrest	19 ins	483 mm
Headroom rear seat	36 ins	914 mm
Inside width at the dashboard	42 ins	1067 mm
Inside width front	47 ins	1194 mm
Inside width rear	47 ins	1194 mm
