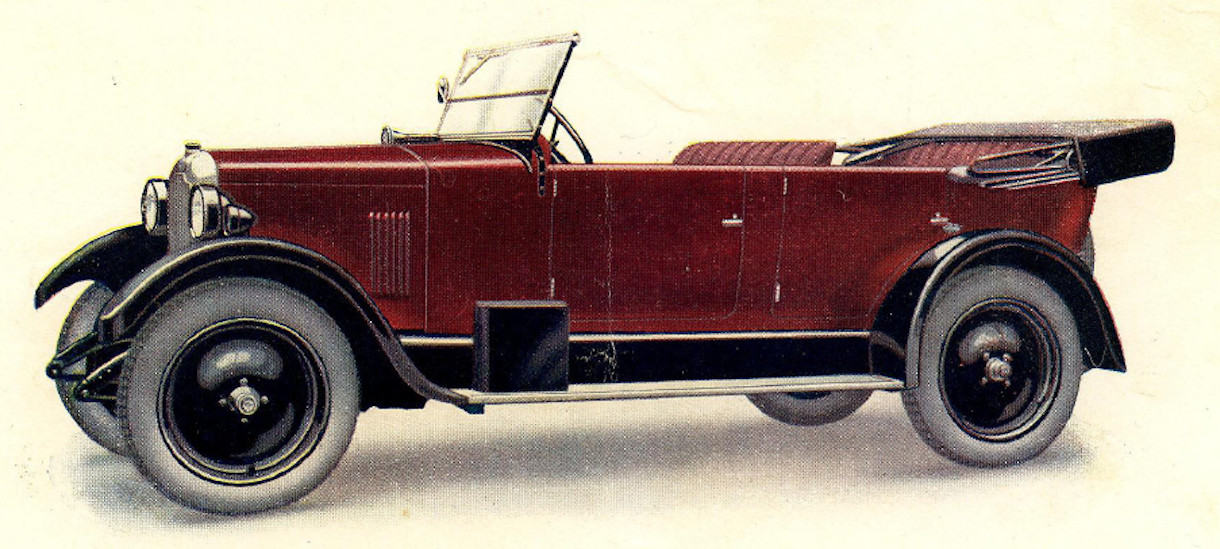

The streamlined body gives the four-seater Touring model a remarkably elegant appearance. There are four very wide doors, each with outside and inside handle. | ||
| Dimensions and Price | |||||
|---|---|---|---|---|---|
| Designation | Imperial | Metric | Designation | Imperial | Metric |
| Wheelbase | 8 ft 8 in | 2642 mm | Track, front and rear | 4 ft | 1219 mm |
| Overall Length | 12 ft 6 in | 3810 mm | Overall Width | 5 ft 1 in | 1549 mm |
| Overall Height | 5 ft 8½ in | 1741 mm | Price ex Works £225 - without front brakes £217 10s - Triplex Windscreen £5 extra | ||

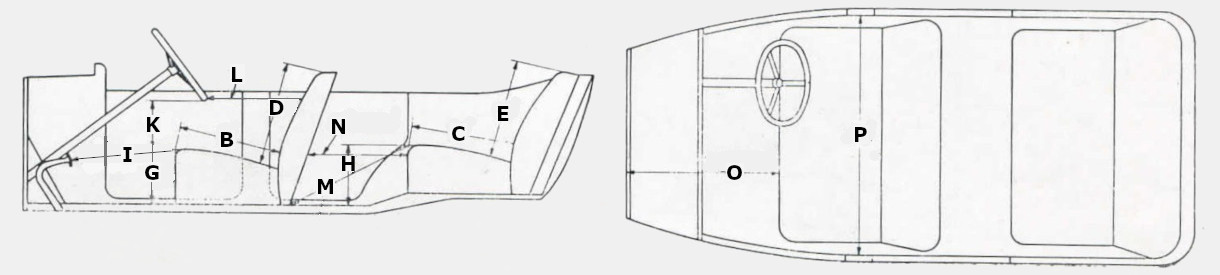

| Interior Dimensions - Four-Seater Tourer | |||||||
|---|---|---|---|---|---|---|---|
![]() | |||||||
| No. | Dimensional Designation< | Inch | mm | No. | Dimensional Designation< | Inch | mm |
| A | Headroom (front edge of seat/cover) | k.A. | k.A. | I | Pedals to front edge of driver seat | 16 - 21 | 406 - 533 |
| B | Seat depth front seat bench | 19 | 483 | K | Steering wheel to front of driver seat | 9 | 229 |
| C | Seat depth rear seat bench | 19 | 483 | L | Steering wheel to driver seat backrest | 15 - 20 | 381 - 508 |
| D | Backrest height Front seat bench | 20 | 508 | M | Front edge rear seat to floor max. | 21 - 26 | 533 - 660 |
| E | Height backrest rear seat. | 19 | 483 | N | Front edge rear seat/front seat bench | 15 - 20 | 381 - 508 |
| G | Floor to front edge of front seat | 10 | 254 | O | Bulkhead to front edge of front seat | 25 - 30 | 635 - 762 |
| H | Floor to front edge of rear seat | 11 | 279 | P | Inner width of the body | 45 | 1143 |
| << Backwards | Image and text from "The Book of the Rover 9/20 hp", 1927 | Forwards >> |
|---|
