ROVER 9/20hp

The Bodies

1924 - 1927

<< Backwards	Rover 9/20 hp Sports Model	Forwards >>

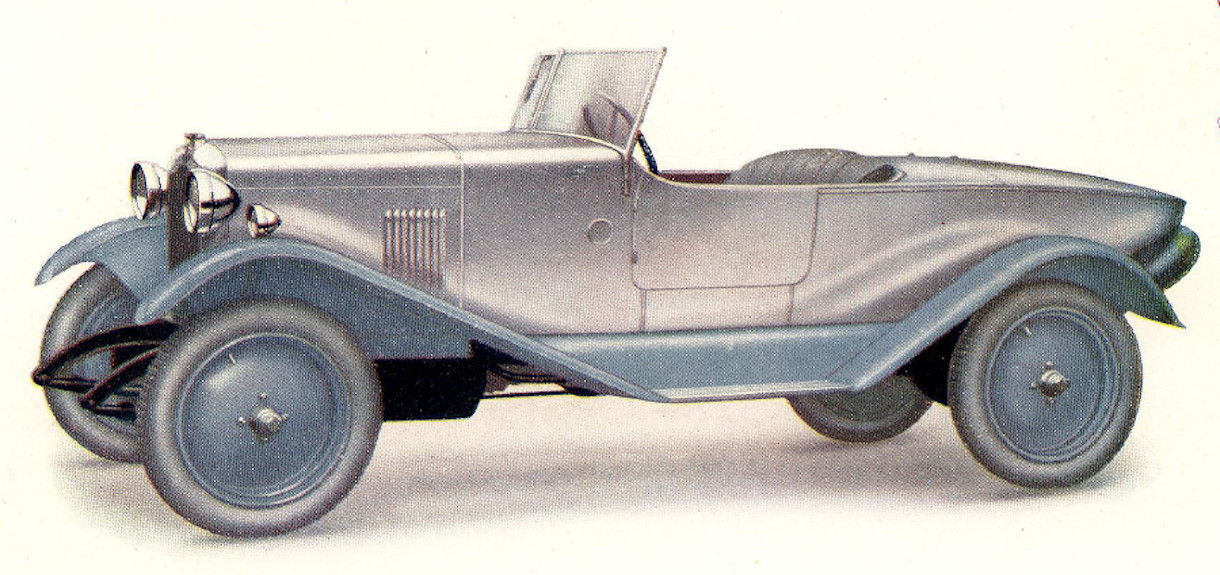

	The sports model offers a specially tuned engine with aluminum pistons. The elegant two-seater body has two doors and a Dickey seat, is equipped with a V-shaped swept windshield and a fully retractable hood, and is made of polished aluminium, with light blue fenders and wheels. The seats are made of genuine leather. The rear axle of this model has shock absorbers that keep the road under control at high speeds.

Dimensions and Price
Designation	Imperial	Metric	Designation	Imperial	Metric
Wheelbase	8 ft 8 in	2642 mm	Track, front and rear	4 ft	1219 mm
Overall Length	12 ft 6 in	3810 mm	Overall Width	5 ft 1 in	1549 mm
Overall Height	5 ft 8½ in	1741 mm	Price ex Works £240 - Triplex Windscreen £6 extra

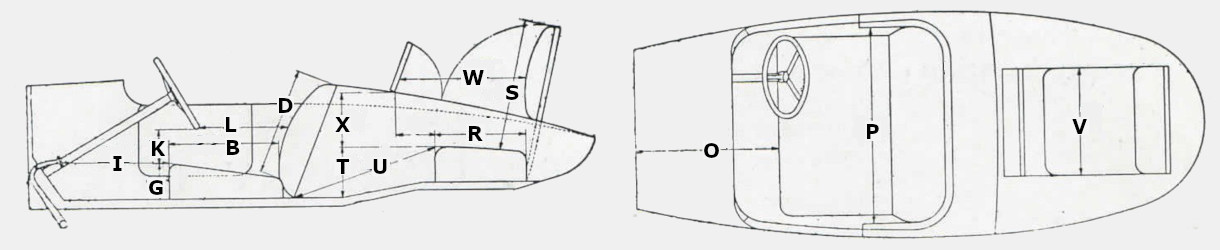

Interior Dimensions - Sports

No.	Dimensional Designation	Inch	mm	No.	Dimensional Designation	Inch	mm
B	Seat depth front seat bench	22	559	K	Steering wheel to front of driver seat	7	178
D	Backrest height Front seat bench	21	533	L	Steering wheel to driver seat backrest	17	432
G	Floor to front edge of front seat	7	178	O	Bulkhead to front edge of front seat	28	711
I	Pedals to front edge of driver seat	21,5	546	P	Inner width of the body	39	991
Dimensions of the Dickey - seat				U	Front edge of seat to front seat bench	30	762
R	Seat depth	18	457	V	Inner Width	21	533
S	Backrest height	26	660	W	Windbreak to seat bench	25	635
T	Front edge seat to floor	11	279	X	Windbreak to front edge of seat	10	254

<< Backwards	Image and text from "The Book of the Rover 9/20 hp", 1927	Forwards >>
